Equipment parameters
Name: Semi automatic soldering machine
Model: DHS-8215QD
Machine dimensions (length x width x height) 400mm * 400mm * 450mm
Power 150w, voltage 220V
Control mode: Zhongda Youkong PLC color integrated
1. DHS-8215QD semi-automatic soldering machine

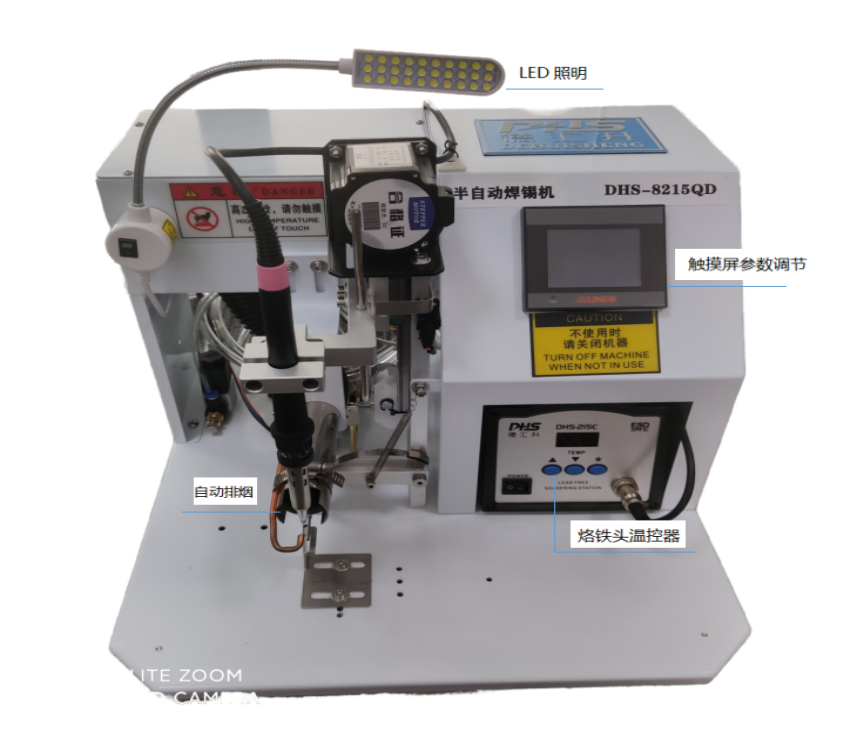

Machine image (subject to actual product)
instructions
Weight: 20KG
Soldering station: Dehui Sheng DHS-215C lead-free soldering station 150W
Appearance color: White
Voltage/Frequency: 220V/50hz
Working pressure: 4-6KG
Machine efficiency: The machine works at a rate of 1.5 seconds per cycle (excluding manual placement time)
Equipment operation instructions
1. Plug in the power supply and gas source

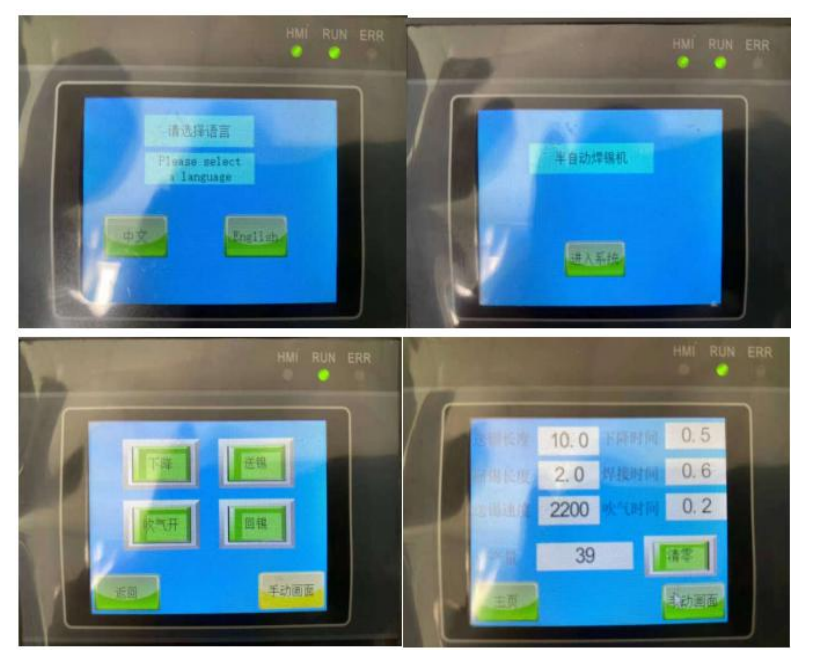

2. Parameter settings
(1) Set the tin feeding length (length>1mm). Tin feeding length:
(2) Set reflow length (length>1mm) reflow length:
3. Speed (speed 1000-2500)
4. Long press the reset button for three seconds to reset the output
5. If the parameter page is blank, press the password 10086 for three seconds to enter the program switch, flat welding/oblique welding
6. Program self-locking function. Manual screen blank. Press and hold for three seconds to enter password 10086 and set the lock password yourself
(1) Specific steps for installing the hot core
(2) Insert the soldering iron tip into the heating tube
(3) Align the notch mark of the soldering iron tip with the direction of the tin feeding tube, tighten the nut knob with pointed pliers, perform daily maintenance on the shift, and clean the surface of the machine
7. Before starting up, check if the soldering iron tip is perforated or oxidized. Before starting up, check if the soldering iron tip moves smoothly up and down. If the tin wire is insufficient, replace it with a new roll. If the tin wire tube is blocked, use alcohol
Clean thoroughly
Please use a copper brush and alcohol to clean the solder wire powder and flux in a timely manner
Ensure sufficient air pressure (0.4-0.5MPa)
Check if all connecting cables are loose, detached, and if the trachea is damaged
Shenzhen Dehui Sheng Technology Co., Ltd
11. Daily maintenance of soldering iron tips, increase the frequency of cleaning soldering iron tips appropriately
Completely remove the solder material pre soldered by the soldering iron tip, cool it to room temperature, remove the oxide with sandpaper, and then restart the heating process
If the soldering iron tip is corroded by oxide, a new soldering iron must be replaced
